600-1250mm Width CE Certified Color-coated CGI Corrugated Galvanized Iron/Steel Roof Sheet with and CE Certificate
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Jinhongtong |
Payment & Shipping Terms:
| Price: | $780.00/tons 1-199 tons |
|---|
|
Detail Information |
|||
| Application: | Roofing Tile And Other Building Material, Roofing Sheet Building | Thickness: | 0.2 - 4 Mm |
|---|---|---|---|
| Standard: | ASTM | Width: | 600-1250 Mm |
| Length: | 1400-1799mm, 1800-2000mm, 2001-3600mm, 3601-3660mm | Certificate: | API, Ce, BIS, JIS, GS, ISO9001 |
| Grade: | SGCC, DX51D, Q195, S550, SGCH, G550 | Coating: | Z30-Z40 |
| Tolerance: | ±5%, ±1% | Processing Service: | Welding, Punching, Cutting, Bending, Decoiling |
| RAL Color: | RAL Colors Customized | Hardness: | Mid Hard |
| Delivery Time: | Within 7 Days | Product Name: | Color Coated Steel Roofing Sheet |
| Keyword: | Corrugated Wave Tile Roof Sheet | Type: | Corrugated Wave Tile |
| Surface Treatment: | Prepainted+hot Dip Galvanized | Color: | Customized RAL |
| Material: | SGCC/CGCC/DX51D+Z/Q195-Q345 | MOQ: | 1 Ton |
| Packages: | Standard Seaworth Packing | Sample: | Sample Freely |
Product Description
Product Description

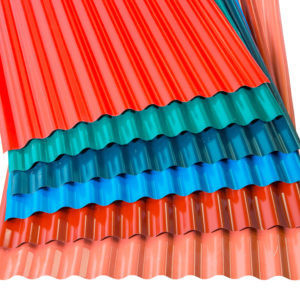

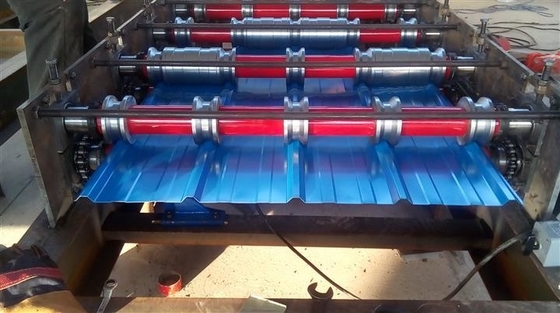

Color coated corrugated steel plate/sheet is a type of steel product that is coated with a layer of paint to protect it from corrosion and rust. The coating is applied to a galvanized/galvalume steel sheet, or aluminum sheet, which is then baked and cured. The total thickness of the pre-painted galvanized steel coil is composed of the base steel, coating, primer, top paint, and protective layer thickness. The top layer is 10 - 25 μm thick, and the back layer is 5 - 20 μm thick. The following types of coatings are available for PPGI/PPGL coils: PE, PVDF, SMP, acrylic, PVC, etc. PPGI corrugated roof sheets are widely used in industrial and civil construction, household appliances, transportation, light industry, and other fields. They are lightweight, durable, and easy to transport. Corrugated PPGI sheets are pre-painted galvanized steel, which is profiled into different corrugations with a roller machine. The common styles include wavy, trapezoidal, tile, etc. Compared to plain sheets, corrugated steel sheets are stronger. While it offers more color and finish choices than CGI sheets.
Specification
Product Name | Color coated corrugated steel plate/sheet |
Type | Corrugated sheet (Wave Tile) |
Material | SGCC, DX51D, Q195, S550, SGCH, G550, S250~S550GD+Z, SGCD-SGCG |
Thickness | 0.2 - 4.0 mm, or according to customer's requirement |
Width | 600 mm - 1 250 mm, or according to customer's requirement |
Length | 2 - 5 m, or according to customer's requirement |
Technique | Cold rolled->hot dipped galvanizing->Color Coated -> corrugated |
Surface Treatment | Deoil, dry, chromate passivated, non-chromate passivated |
Zinc coating | Z 30 - 275 g/m2 |
Certification | ISO 9001-2008, SGS, CE, BV |
Standard | GB/T 12754-2006; ASTM A 755; EN 10169; JIS G 3312; AISI; BS; DIN |
Application | 1. Roofing sheet/plate/tile 2. Building material: industrial and civil construction, transportation, light industry |
Regular Types for your reference | ||||||
Tile Types | Effective Width(mm) | Feeding Width(mm) | Thickness(mm) | |||
YX10-128-900 | 900 | 1000 | 0.15-0.8 | |||
YX14-65-850 | 850 | 1000 | 0.15-0.8 | |||
YX15-225-900 | 900 | 1000 | 0.15-0.8 | |||
YX18-76-665 | 665 | 750-762 | 0.15-0.8 | |||
YX18-76-800 | 800 | 900-914 | 0.15-0.8 | |||
YX18-76-900 | 900 | 1000 | 0.15-0.8 | |||
YX25-205-820 | 820 | 1000 | 0.15-0.8 | |||
YX25-205-1025 | 1025 | 1200 | 0.15-0.8 | |||
YX25-210-840 | 840 | 1200 | 0.15-0.8 | |||
YX25-210-1050 | 1050 | 1200 | 0.15-0.8 | |||
YX28-207-828 | 828 | 1000 | 0.15-0.8 | |||
YX28-207-1035 | 1035 | 1200 | 0.15-0.8 | |||
YX25-196-980 | 980 | 1000 | 0.15-0.8 | |||
YX25-2196-782 | 782 | 1000 | 0.15-0.8 | |||
YX35-200-1000 | 1000 | 1200 | 0.15-0.8 | |||
Contact us for more details. Carl Lee: +86 156 6269 5973 | ||||||
Packing & Delivery
Application
Company Profile
Jinhongtong Group Co.,ltd. is a large-scale comprehensive enterprise specializing in the production, processing, sales, import and export of steel products, with a registered capital of 70 million yuan, has more than 500 permanent employees and a plant area of more than 70,000 Square meter. The company has long-term stable strategic cooperative relations with steel mills such as Laiwu Iron and Steel, Shougang, Jinan Iron and Steel, Anshan Iron and Steel, Baosteel, Handan Iron and Steel, Jinxi Iron and Steel, etc., ensuring that our company has sufficient supply, complete varieties, and price advantages. It is our company's In the fierce market competition, it has won the trust of many customers and developed into "one of the largest steel products suppliers in China". The company has an international trade department with its own import and export rights. It implements an integrated operation model from signing to shipping, carries out professional steel import and export trade, and provides one-stop purchasing services to our customers.
Our company has independent steel pipe factories, GI/PPGI factories, steel profile factories, and hot-rolled steel plate processing plants. The main products include hot-rolled/cold-rolled steel plates, welded pipes, seamless pipes, galvanized coils, color-coated coils, aluminum plates and various types of steel. We have long-term inventory of more than 5,000 tons.
High-quality products, first-class service and professional export experience have made us the first choice of customers over the years. We rely on stable quality, good reputation and strong strength to provide customers with the best service experience.Well-equipped facilities and excellent quality control throughout all stages of production to ensure customer satisfaction.We have a complete sales service system, and can provide customized services for customers.Our Products have been sold all over the world and quality trusted by customers at home and abroad.
Jinhongtong Group sincerely hope to establish a good long-term cooperative relationship with you for mutual benefit and common development!
